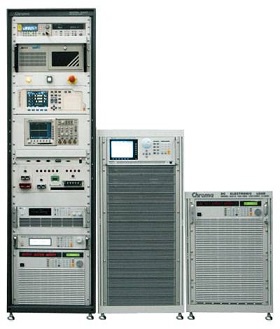

車載充電器OBC/DC-DC轉換器測試解決方案是以Chroma 8000-ATS為基礎的客制化測試系統。
針對電動車車載充電器OBC及DC-DC轉換器的待測物特性搭配整合式接線面板及專屬測試項目，包含基本電氣特性及通訊協定測試項目，以大幅縮短測試時間。
此系統針對電動/混合動力汽車的車載充電器OBC與DC/DC轉換器的輸入/輸出特性、效率與保護項目測試。
優化后的標準測試項目(On-Board Charger):
可符合QC/T 895-2011法規標準
- Charger Pre-setup (初始設定)
- Charger Input/Output Test (輸入輸出測試)
- Charger Line Regulation Test(輸入效應測試)
- Charger Load Regulation Test(負載效應測試)
- Charger Hold On Adjust Test(在線調整測試)
- Charger Fin Ramp Shut Down Test(輸入頻率極限測試)
- Charger Fin Ramp Start Up Test(開機頻率極限測試)
- DSO Setup For 4 Channels(數位式示波器設定/4 Channels)
- Charger Cursor Measure Time(光標量測時間)
- Charger Load Setup(負載設定)
- Charger Over Load Protection Test(過載保護測試)
- Charger OVP (CC Mode) Test(負載定電流模式下過電壓測試)
- Charger OVP (CV Mode) Test(負載定電壓模式下過電壓測試)
- Charger Peak Current Test(峰值電流測試)
- Charger Ripple & Noise Test(漣波及雜訊測試)
- Charger Short Circuit Protection Test(輸出短路保護測試)
- Charger Static Test(靜態測試)
- Charger Vin Ramp Shut Down Test(輸入電壓極限測試)
- Charger Vin Start Up Test(開機輸入電壓極限測試)
- Charger Waveform Measure Test(波形量測)
- Charger Waveform Measure Turn On Test(開機波形量測)
- Charger Waveform Measure Turn Off Test(關機波形量測)
- Enable Turn On/Off Charger
- CAN Bus Reading Charger
優化后的標準測試項目(DC-DC Converter):
可符合GB/T 24347-2009法規測試
- DD-System Pre-setup(系統初始設定)
- DC-DC Input/Output Test(輸入輸出及效率測試)
- DC-DC Line Regulation Test(輸入效應測試)
- DC-DC Load Regulation Test(負載效應測試)
- DC-DC Hold On Adjust Test(在線調整測試)
- DSO Setup For 4 Channels(數位式示波器設定/4 Channels)
- DC-DC Cursor Measure Time(光標量測時間)
- DC-DC Over Load Protection Test(過載保護測試)
- DC-DC Over Voltage Protection Test(過電壓保護測試)
- DC-DC Peak Current Test(峰值電流測試)
- DC-DC Ripple & Noise Test(漣波及雜訊測試)
- DC-DC Short Circuit Protection Test(短路保護測試)
- DC-DC Total Regulation Test(總效應測試)
- DC-DC Vin Ramp Shut Down Test(輸入電壓極限測試)
- DC-DC Vin Ramp Start Up Test(開機輸入電壓極限測試)
- DC-DC Waveform Measure Test波形量測)
- DC-DC Waveform Measure Turn On Test(開機波形量測)
- DC-DC Waveform Measure Turn Off Test(關機波形量測)
- Total Efficiency Test(總效率量測)
- Enable Turn On/Off DC-DC
- CAN Bus Reading Charger
- CAN Bus Pre-Setup(初始訊息設定)
如需更多產品資訊，請跟我們聯系。
